| General information | |
|---|---|
| Brand | Peugeot |
| Model | Partner |

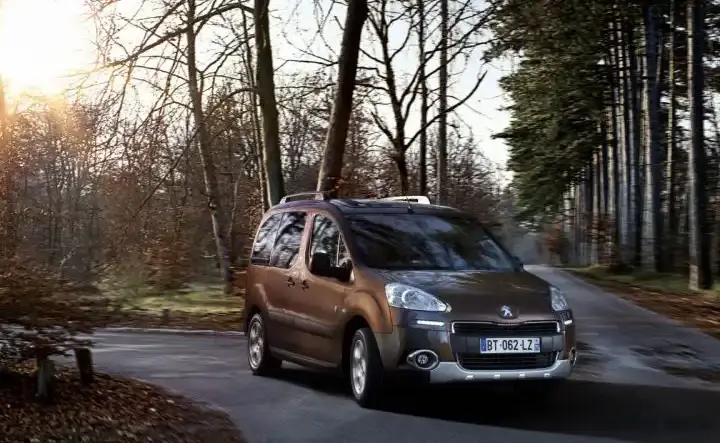

| Generation | Partner II Tepee (Phase II, 2012) |
| Type (Engine) | 1.6 HDi (115 Hp) |
| Start of production | 2012 year |
| End of production | 2018 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban | 6.1 l/100 km 38.6 US mpg 46.3 UK mpg 16.4 km/l |
| Fuel consumption (economy) – extra urban | 4.9 l/100 km 48 US mpg 57.6 UK mpg 20.4 km/l |
| Fuel consumption (economy) – combined | 5.3 l/100 km 44.4 US mpg 53.3 UK mpg 18.9 km/l |
| CO2 emissions | 134 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 12.1 sec |
| Acceleration 0 – 62 mph | 12.1 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 11.5 sec |
| Maximum speed | 172 km/h 106.88 mph |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 12.8 kg/Hp, 77.9 Hp/tonne |
| Weight-to-torque ratio | 6.2 kg/Nm, 162.6 Nm/tonne |
| Engine specs | |
| Power | 115 Hp @ 3600 rpm. |
| Power per litre | 73.7 Hp/l |
| Torque | 240 Nm @ 1500 rpm. 177.01 lb.-ft. @ 1500 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | 9HL DV6C |
| Engine displacement | 1560 cm3 95.2 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75 mm 2.95 in. |
| Piston Stroke | 88.3 mm 3.48 in. |
| Number of valves per cylinder | 2 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 3.75 l 3.96 US qt | 3.3 UK qt |
| Engine oil specification |  Log in to see. |
| Engine systems | Particulate filter |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1476 kg 3254.02 lbs. |
| Max. weight | 2065 kg 4552.55 lbs. |
| Max load | 589 kg 1298.52 lbs. |
| Trunk (boot) space – minimum | 675 l 23.84 cu. ft. |
| Trunk (boot) space – maximum | 3000 l 105.94 cu. ft. |
| Fuel tank capacity | 60 l 15.85 US gal | 13.2 UK gal |
| Dimensions | |
| Length | 4380 mm 172.44 in. |
| Width | 1810 mm 71.26 in. |
| Height | 1862 mm 73.31 in. |
| Wheelbase | 2728 mm 107.4 in. |
| Front track | 1505 mm 59.25 in. |
| Rear (Back) track | 1554 mm 61.18 in. |
| Minimum turning circle (turning diameter) | 11 m 36.09 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 205/65 R15 |
| Wheel rims size | 15 |
| What is the body type, Peugeot Partner II Tepee (Phase II, 2012)? | Minivan, 5 Doors, 5 Seats |
|---|---|
| What is the fuel economy, Peugeot Partner II Tepee (Phase II, 2012) 1.6 HDi (115 Hp)? | 5.3 l/100 km 44.4 US mpg 53.3 UK mpg 18.9 km/l |
| How ECO is the car, Peugeot Partner 1.6 HDi (115 Hp)? | 134 g/km CO2 Euro 5 |
| How fast is the car, 2012 Partner II Tepee (Phase II, 2012) 1.6 HDi (115 Hp)? | 172 km/h | 106.88 mph 0-100 km/h: 12.1 sec 0-60 mph: 11.5 sec |
| How much power, Peugeot Partner Minivan 2012 1.6 HDi (115 Hp)? | 115 Hp, 240 Nm 177.01 lb.-ft. |
| What is the engine size, Peugeot Partner Minivan 2012 1.6 HDi (115 Hp)? | 1.6 l 1560 cm3 95.2 cu. in. |
| How many cylinders, 2012 Peugeot 1.6 HDi (115 Hp)? | 4, Inline |
| What is the drivetrain, Peugeot Partner II Tepee (Phase II, 2012) Minivan 2012 1.6 HDi (115 Hp)? | Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| How long is this vehicle, 2012 Peugeot Partner Minivan? | 4380 mm 172.44 in. |
| How wide is the vehicle, 2012 Peugeot Partner Minivan? | 1810 mm 71.26 in. |
| What is the curb weight, 2012 Peugeot Partner II Tepee (Phase II, 2012) 1.6 HDi (115 Hp)? | 1476 kg 3254.02 lbs. |
| What is the gross weight, 2012 Peugeot Partner II Tepee (Phase II, 2012) 1.6 HDi (115 Hp)? | 2065 kg 4552.55 lbs. |
| How much trunk (boot) space, 2012 Peugeot Partner Minivan? | 675 – 3000 l 23.84 – 105.94 cu. ft. |
| How many gears, What type is the gearbox, 2012 Peugeot Partner II Tepee (Phase II, 2012) 1.6 HDi (115 Hp)? | 5, manual transmission |
