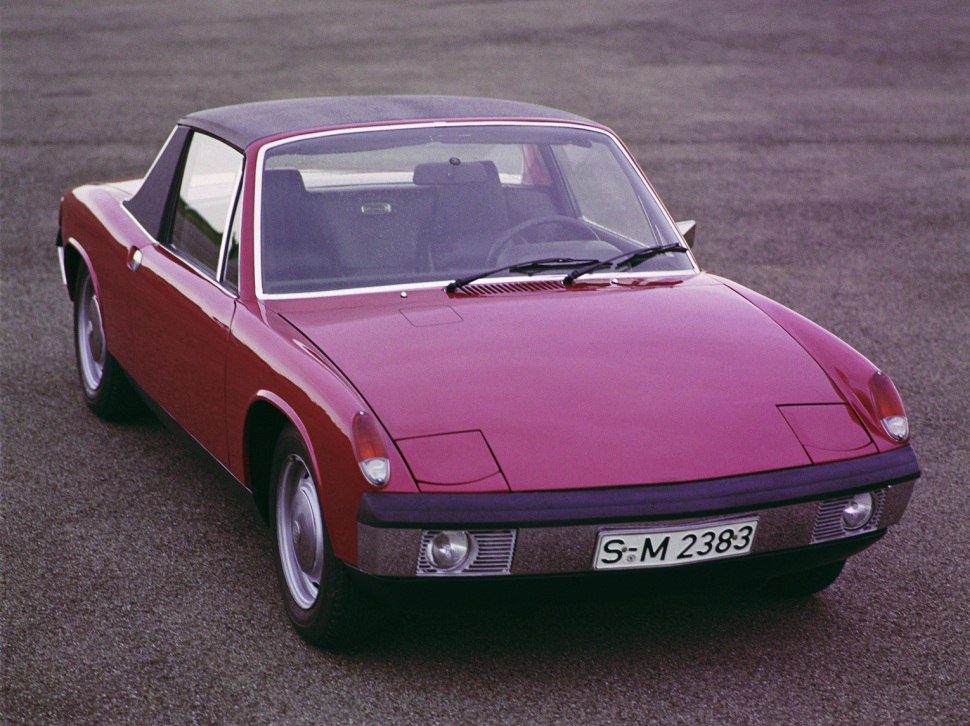

The Porsche 914, particularly the 1.8-liter variant producing 74 horsepower, represents a unique chapter in Porsche’s history. Produced between 1974 and 1976, this model occupied an entry-level position within the Porsche lineup, aiming to offer a more accessible sports car experience. While not initially embraced by Porsche purists, the 914 has since gained a dedicated following for its distinctive mid-engine layout, lightweight construction, and engaging driving dynamics. It was a collaborative effort between Porsche and Volkswagen, designed to fill a gap in the market for an affordable, sporty two-seater.
The Porsche 914: A Mid-Engine Marvel
The 914 was conceived as part of a project to replace the aging Porsche 912. Facing financial constraints, Porsche partnered with Volkswagen, leveraging VW’s existing Beetle platform and components. This collaboration resulted in a car that shared some mechanical elements with the Volkswagen-Porsche 914/6, a higher-performance version equipped with a six-cylinder engine. However, the 914/6 was discontinued in 1972, leaving the four-cylinder 914 as the sole offering until the introduction of the 914 2.0 in 1976. The 1.8-liter version, the focus of this article, provided a balance between affordability and the Porsche driving experience.
Engine & Performance
The heart of the 1974-1976 Porsche 914 1.8 is a 1.8-liter (1795 cc) naturally aspirated, four-cylinder boxer engine. This engine, a hallmark of Porsche engineering, delivers 74 horsepower at 4900 rpm and 120 Nm (88.51 lb.-ft.) of torque at 4000 rpm. The boxer configuration, with its horizontally opposed pistons, contributes to a low center of gravity, enhancing handling and stability. Power per liter is a respectable 41.2 hp/l. The engine’s output, while modest by modern standards, was sufficient to propel the lightweight 914 to a top speed of 170 km/h (105.63 mph). Acceleration from 0 to 100 km/h (0-62 mph) takes 13.5 seconds, while 0 to 60 mph is achieved in approximately 12.8 seconds. The engine is fed by gasoline and exhibits a combined fuel consumption of 8.6 l/100 km (27.4 US mpg, 32.8 UK mpg, 11.6 km/l). The engine’s longitudinal, mid-mounted placement further optimizes weight distribution, contributing to the car’s nimble handling characteristics.
Design & Features
The Porsche 914 is instantly recognizable by its distinctive Targa top – a removable roof panel that provides an open-air driving experience. The body is a two-door, two-seater configuration, emphasizing its sporty intentions. The car’s design, penned by Butzi Porsche, is characterized by its clean lines and relatively compact dimensions. The 914’s mid-engine layout necessitated a unique design approach, resulting in a car that is lower and wider than many of its contemporaries. Inside, the 914 offers a minimalist interior focused on the driving experience. While not lavishly equipped, the car features essential controls and instrumentation. Safety features of the era were relatively basic, consisting primarily of seatbelts. The trunk space, ranging from 160 to 370 liters (5.65 to 13.07 cu. ft.), is surprisingly practical for a sports car, thanks to the dual luggage compartments – one in the front and one in the rear. The car’s relatively light curb weight of 1000 kg (2204.62 lbs) contributes significantly to its agility and responsiveness.
Technical Specifications
| Brand | Porsche |
| Model | 914 |
| Generation | 914 |
| Type (Engine) | 1.8 (74 Hp) |
| Start of production | 1974 |
| End of production | 1976 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Targa |
| Seats | 2 |
| Doors | 2 |
| Fuel consumption (combined) | 8.6 l/100 km |
| Fuel consumption (US mpg) | 27.4 US mpg |
| Fuel consumption (UK mpg) | 32.8 UK mpg |
| Fuel consumption (km/l) | 11.6 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.5 sec |
| Acceleration 0 – 62 mph | 13.5 sec |
| Acceleration 0 – 60 mph | 12.8 sec |
| Maximum speed | 170 km/h (105.63 mph) |
| Weight-to-power ratio | 13.5 kg/Hp |
| Weight-to-torque ratio | 8.3 kg/Nm |
| Power | 74 Hp @ 4900 rpm |
| Power per litre | 41.2 Hp/l |
| Torque | 120 Nm @ 4000 rpm (88.51 lb.-ft. @ 4000 rpm) |
| Engine layout | Middle, Longitudinal |
| Engine displacement | 1795 cm3 (109.54 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Boxer |
| Cylinder Bore | 93 mm (3.66 in.) |
| Piston Stroke | 66 mm (2.6 in.) |
| Compression ratio | 7.3:1 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.5 l (3.7 US qt | 3.08 UK qt) |
| Kerb Weight | 1000 kg (2204.62 lbs.) |
| Max. weight | 1220 kg (2689.64 lbs.) |
| Max load | 220 kg (485.02 lbs.) |
| Trunk (boot) space – minimum | 160 l (5.65 cu. ft.) |
| Trunk (boot) space – maximum | 370 l (13.07 cu. ft.) |
| Length | 4114 mm (161.97 in.) |
| Width | 1650 mm (64.96 in.) |
| Height | 1230 mm (48.43 in.) |
| Wheelbase | 2450 mm (96.46 in.) |
| Front track | 1343 mm (52.87 in.) |
| Rear (Back) track | 1383 mm (54.45 in.) |
| Ride height (ground clearance) | 130 mm (5.12 in.) |
| Minimum turning circle (turning diameter) | 11 m (36.09 ft.) |
| Drivetrain Architecture | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Torsion |
| Front brakes | Disc, 232 mm |
| Rear brakes | Disc, 240 mm |
| Steering type | Steering rack and pinion |
The Porsche 914 1.8, despite its initial reception, has proven to be a durable and enjoyable classic sports car. Its mid-engine layout, lightweight construction, and engaging driving dynamics continue to appeal to enthusiasts today. It represents a unique and often overlooked chapter in Porsche’s storied history, offering a distinctive alternative to more conventional sports cars of the era.
