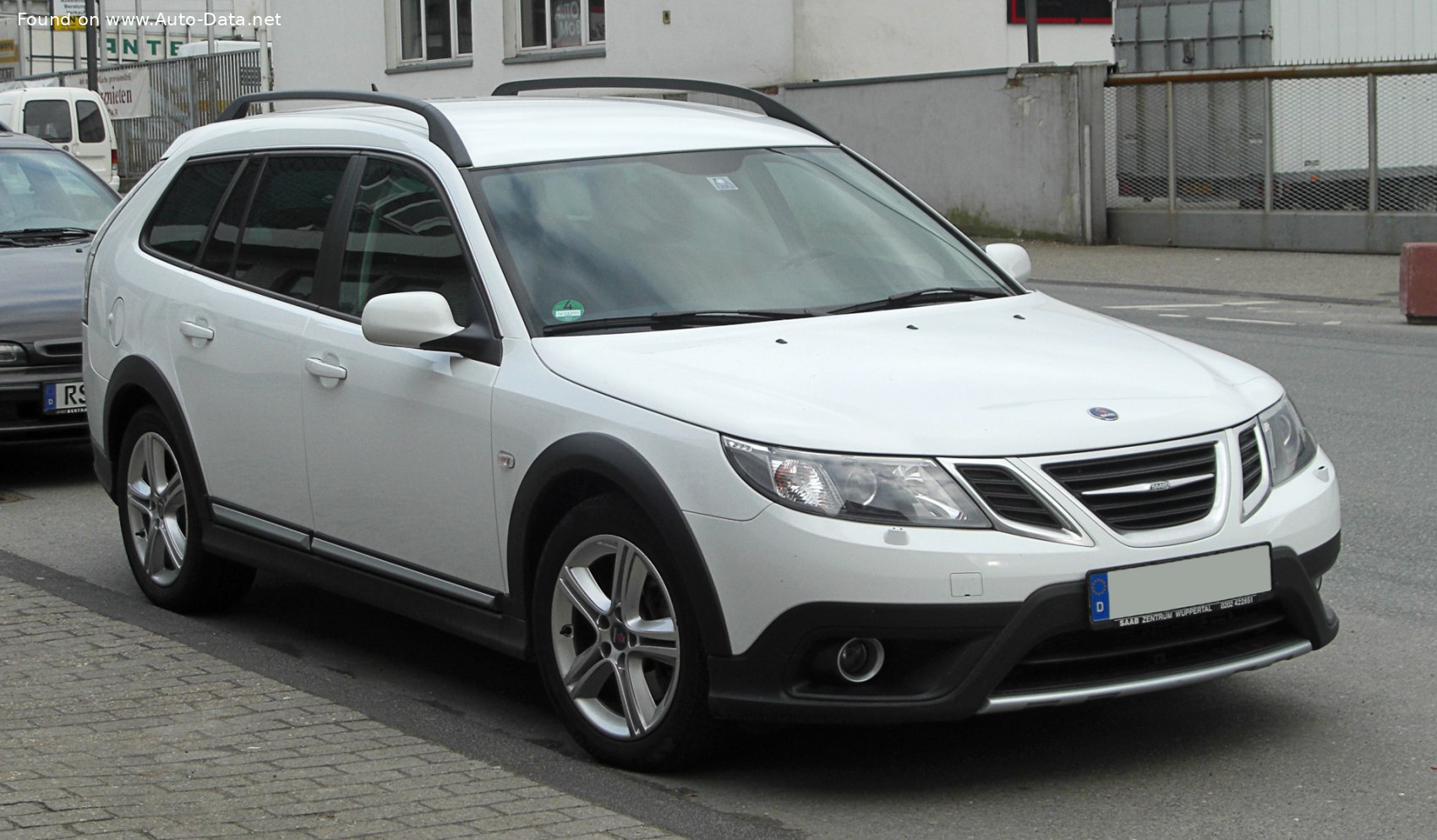

| General information | |
|---|---|
| Brand | Saab |
| Model | 9-3 |
| Generation | 9-3X II |
| Type (Engine) | 1.9 TTiD (180 Hp) |
| Start of production | June, 2009 year |
| End of production | December, 2010 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate), Crossover |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban (NEDC) | 7 l/100 km 33.6 US mpg 40.4 UK mpg 14.3 km/l |
| Fuel consumption (economy) – extra urban (NEDC) | 4.6 l/100 km 51.1 US mpg 61.4 UK mpg 21.7 km/l |
| Fuel consumption (economy) – combined (NEDC) | 5.5 l/100 km 42.8 US mpg 51.4 UK mpg 18.2 km/l |
| CO2 emissions (NEDC) | 144 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 8.7 sec |
| Acceleration 0 – 62 mph | 8.7 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 8.3 sec |
| Maximum speed | 220 km/h 136.7 mph |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 9.2 kg/Hp, 108.9 Hp/tonne |
| Weight-to-torque ratio | 4.1 kg/Nm, 242 Nm/tonne |
| Engine specs | |
| Power | 180 Hp @ 4000 rpm. |
| Power per litre | 94.2 Hp/l |
| Torque | 400 Nm @ 1850-2750 rpm. 295.02 lb.-ft. @ 1850-2750 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | Z19DTR |
| Engine displacement | 1910 cm3 116.56 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82 mm 3.23 in. |
| Piston Stroke | 90.4 mm 3.56 in. |
| Compression ratio | 16.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Twin-Turbo, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 4.5 l 4.76 US qt | 3.96 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 7.4 l 7.82 US qt | 6.51 UK qt |
| Engine systems | Particulate filter |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1653-1761 kg 3644.24 – 3882.34 lbs. |
| Max. weight | 2118-2226 kg 4669.39 – 4907.49 lbs. |
| Max load | 465 kg 1025.15 lbs. |
| Trunk (boot) space – minimum | 477 l 16.85 cu. ft. |
| Trunk (boot) space – maximum | 1331 l 47 cu. ft. |
| Fuel tank capacity | 58 l 15.32 US gal | 12.76 UK gal |
| Max. roof load | 100 kg 220.46 lbs. |
| Permitted trailer load with brakes (12%) | 1600 kg 3527.4 lbs. |
| Permitted trailer load without brakes | 750 kg 1653.47 lbs. |
| Dimensions | |
| Length | 4690 mm 184.65 in. |
| Width | 1802 mm 70.94 in. |
| Width including mirrors | 2038 mm 80.24 in. |
| Height | 1575 mm 62.01 in. |
| Wheelbase | 2675 mm 105.31 in. |
| Front track | 1524 mm 60 in. |
| Rear (Back) track | 1504 mm 59.21 in. |
| Front overhang | 985 mm 38.78 in. |
| Rear overhang | 1030 mm 40.55 in. |
| Minimum turning circle (turning diameter) | 11.4 m 37.4 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs, 314 mm |
| Rear brakes | Ventilated discs, 292 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 225/50 R17; 235/45 R18 |
| Wheel rims size | 7J x 17; 7.5J x 18 |
| What is the body type, Saab 9-3X II? | Station wagon (estate), Crossover, 5 Doors, 5 Seats |
|---|---|
| What is the fuel economy, Saab 9-3X II 1.9 TTiD (180 Hp)? | 5.5 l/100 km 42.8 US mpg 51.4 UK mpg 18.2 km/l |
| How ECO is the car, Saab 9-3 1.9 TTiD (180 Hp)? | 144 g/km CO2 Euro 4 |
| How fast is the car, 2009 9-3X II 1.9 TTiD (180 Hp)? | 220 km/h | 136.7 mph 0-100 km/h: 8.7 sec 0-60 mph: 8.3 sec |
| How much power, Saab 9-3 Station wagon (estate), Crossover 2009 1.9 TTiD (180 Hp)? | 180 Hp, 400 Nm 295.02 lb.-ft. |
| What is the engine size, Saab 9-3 Station wagon (estate), Crossover 2009 1.9 TTiD (180 Hp)? | 1.9 l 1910 cm3 116.56 cu. in. |
| How many cylinders, 2009 Saab 1.9 TTiD (180 Hp)? | 4, Inline |
| What is the drivetrain, Saab 9-3X II Station wagon (estate), Crossover 2009 1.9 TTiD (180 Hp)? | Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| How long is this vehicle, 2009 Saab 9-3 Station wagon (estate), Crossover? | 4690 mm 184.65 in. |
| How wide is the vehicle, 2009 Saab 9-3 Station wagon (estate), Crossover? | 1802 mm 70.94 in. |
| What is the curb weight, 2009 Saab 9-3X II 1.9 TTiD (180 Hp)? | 1653-1761 kg 3644.24 – 3882.34 lbs. |
| What is the gross weight, 2009 Saab 9-3X II 1.9 TTiD (180 Hp)? | 2118-2226 kg 4669.39 – 4907.49 lbs. |
| How much trunk (boot) space, 2009 Saab 9-3 Station wagon (estate), Crossover? | 477 – 1331 l 16.85 – 47 cu. ft. |
| How many gears, What type is the gearbox, 2009 Saab 9-3X II 1.9 TTiD (180 Hp)? | 6, manual transmission |
