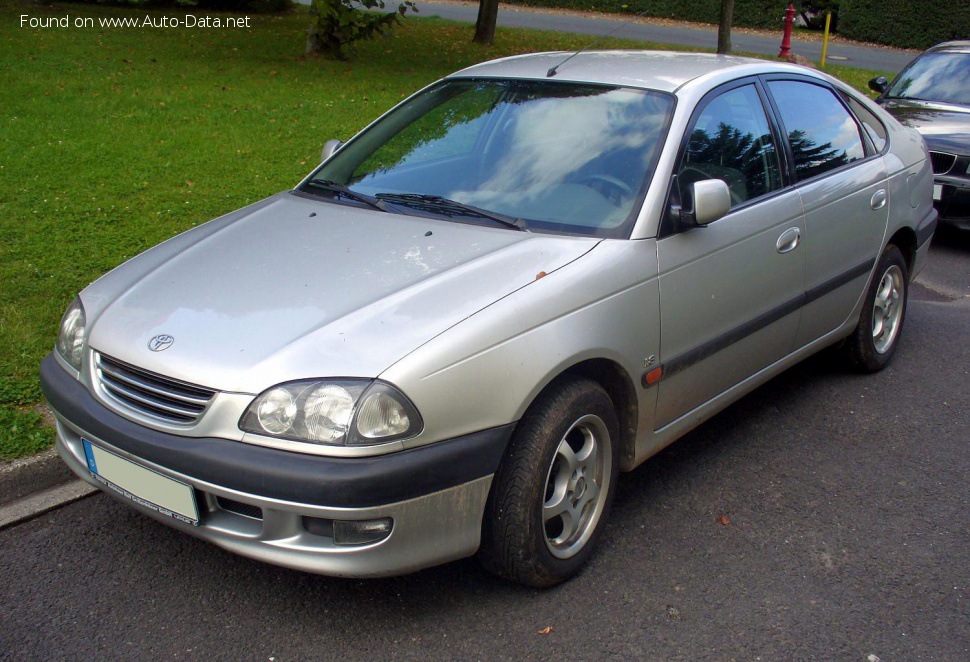

The Toyota Avensis Hatch (T22) 1.8, produced between 1997 and 2003, represented a key offering in Toyota’s European D-segment lineup. Positioned as a practical and reliable family hatchback, the T22 Avensis aimed to compete with established rivals like the Ford Mondeo, Vauxhall/Opel Vectra, and Peugeot 406. This 1.8-liter variant, delivering 110 horsepower, served as a mid-range option, bridging the gap between the base 1.6L models and the more powerful 2.0L versions. It was primarily marketed towards buyers seeking a balance of fuel efficiency, reasonable performance, and Toyota’s renowned build quality. The Avensis, in general, was Toyota’s attempt to create a genuinely European-focused vehicle, designed and engineered with European tastes and driving conditions in mind.
Technical Specifications
| Brand | Toyota |
| Model | Avensis |
| Generation | Avensis Hatch (T22) |
| Type (Engine) | 1.8 (110 Hp) |
| Start of production | 1997 |
| End of production | 2003 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 11.7 l/100 km (20.1 US mpg) |
| Fuel consumption (extra urban) | 6.2 l/100 km (37.9 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 11 sec |
| Acceleration 0 – 62 mph | 11 sec |
| Acceleration 0 – 60 mph | 10.5 sec |
| Maximum speed | 195 km/h (121.17 mph) |
| Weight-to-power ratio | 11.5 kg/Hp |
| Weight-to-torque ratio | 8.4 kg/Nm |
| Power | 110 Hp @ 5800 rpm |
| Torque | 150 Nm @ 2800 rpm (110.63 lb.-ft. @ 2800 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 7A-FE |
| Engine displacement | 1762 cm3 (107.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 85.5 mm (3.37 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 3.7 l (3.91 US qt | 3.26 UK qt) |
| Coolant capacity | 6.2 l (6.55 US qt | 5.46 UK qt) |
| Kerb Weight | 1260 kg (2777.82 lbs.) |
| Max. weight | 1790 kg (3946.27 lbs.) |
| Max load | 530 kg (1168.45 lbs.) |
| Trunk (boot) space – minimum | 510 l (18.01 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4490 mm (176.77 in.) |
| Width | 1710 mm (67.32 in.) |
| Height | 1425 mm (56.1 in.) |
| Wheelbase | 2630 mm (103.54 in.) |
| Front track | 1480 mm (58.27 in.) |
| Rear track | 1450 mm (57.09 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/65 R14 |
| Wheel rims size | 14 |
Powertrain & Engine Architecture
The heart of the Avensis 1.8 was the 7A-FE engine, a 1.8-liter (1762 cc) inline-four cylinder gasoline engine. This engine was a staple in Toyota’s lineup during the late 1990s and early 2000s, known for its reliability and relatively simple design. The 7A-FE featured a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, contributing to its respectable power output for its displacement. Fuel delivery was handled by a multi-port fuel injection system, optimizing fuel atomization and combustion efficiency. The engine produced 110 horsepower at 5800 rpm and 150 Nm (110.63 lb-ft) of torque at 2800 rpm. The five-speed manual transmission was the standard offering, providing a balance between fuel economy and driver engagement. The transmission’s gear ratios were tuned for everyday usability, prioritizing smooth shifts and adequate acceleration rather than outright performance.
Driving Characteristics
The Avensis 1.8 with the manual transmission offered a reasonably pleasant driving experience. Acceleration from 0-60 mph took around 10.5 seconds, which was adequate for typical commuting and highway merging, but not particularly sporty. The engine felt responsive enough in the mid-range, providing sufficient power for overtaking maneuvers. However, it did require the driver to downshift to access its full potential, especially when fully loaded. Compared to the 2.0-liter Avensis, the 1.8 felt noticeably less powerful, but it offered better fuel economy. The manual gearbox was light and precise, enhancing driver control. The suspension provided a comfortable ride, absorbing bumps and imperfections in the road effectively, although it wasn’t particularly engaging for enthusiastic drivers.
Equipment & Trim Levels
The Avensis 1.8 typically came with a respectable level of standard equipment. Base models included power steering, central locking, electric front windows, and an AM/FM radio. Higher trim levels, often denoted by suffixes like ‘GL’ or ‘GS’, added features such as alloy wheels, air conditioning, a CD player, and upgraded interior trim. Interior upholstery was typically cloth, with options for more premium materials on higher-spec models. Safety features included dual airbags and ABS (Anti-lock Braking System) as standard equipment. Optional extras included a sunroof, rear electric windows, and metallic paint.
Chassis & Braking
The Avensis T22 utilized a front-engine, front-wheel-drive layout. The front suspension employed a MacPherson strut design, while the rear suspension featured a coil spring setup. This configuration provided a good balance between ride comfort and handling. Braking duties were handled by ventilated discs on the front wheels and drum brakes on the rear. While the front discs provided adequate stopping power, the rear drums were a cost-saving measure and offered less consistent performance, particularly under heavy braking. The steering system was a rack-and-pinion setup with hydraulic power assistance, providing light and precise steering feel.
Market Reception & Comparison
The Avensis 1.8 was generally well-received by automotive critics as a practical and reliable family car. It was praised for its comfortable ride, spacious interior, and Toyota’s reputation for build quality. However, it was often criticized for its somewhat bland styling and lack of driving excitement compared to some of its rivals. Compared to the 2.0-liter Avensis, the 1.8 offered better fuel economy – around 37.9 US mpg on the extra-urban cycle – but at the expense of performance. The 1.6-liter models were even more fuel-efficient but lacked the power needed for comfortable highway cruising. The Avensis 1.8 represented a sensible choice for buyers prioritizing practicality and reliability over sporty driving dynamics.
Legacy
The 7A-FE engine, found in the Avensis 1.8, has proven to be remarkably durable and reliable over the long term. With proper maintenance, these engines can easily exceed 200,000 miles. Today, the Avensis T22 1.8 remains a relatively affordable and dependable used car option. Parts availability is generally good, and maintenance costs are reasonable. While it may not offer the latest technology or the most exciting driving experience, the Avensis 1.8 continues to appeal to buyers seeking a practical, reliable, and economical family hatchback. Its reputation for longevity has cemented its place as a solid and trustworthy vehicle in the used car market.
