| General information | |
|---|---|
| Brand | Toyota |
| Model | Corolla |

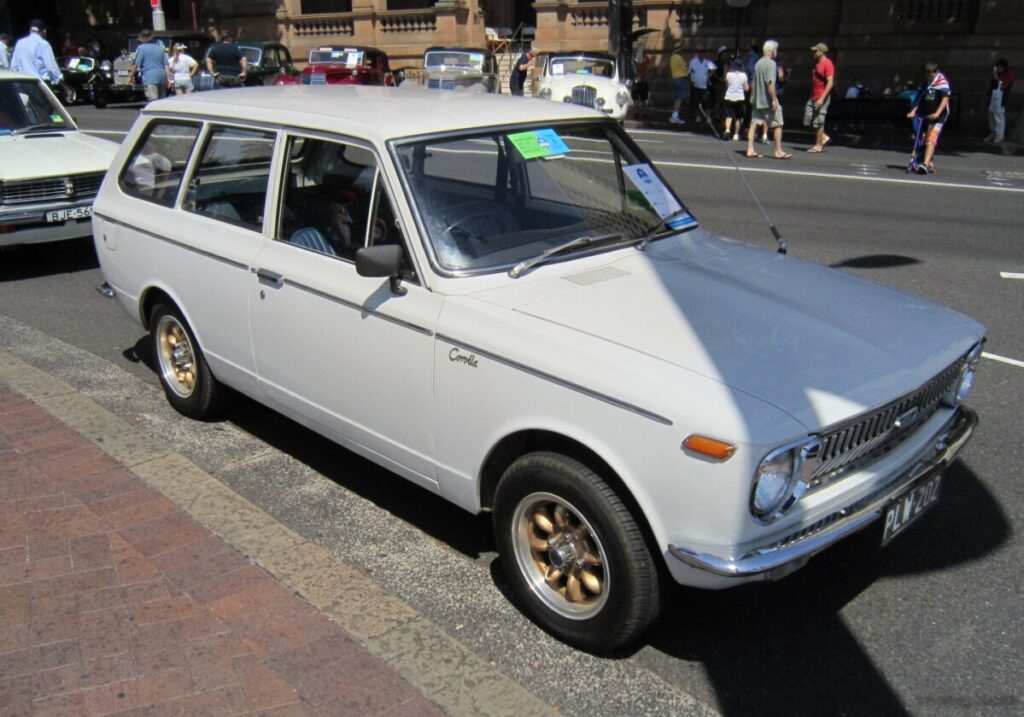

| Generation | Corolla I Station Wagon (E10) |
| Type (Engine) | 1200 (68 Hp) |
| Start of production | 1969 year |
| End of production | 1970 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 3 |
| Performance specs | |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 135 km/h 83.89 mph |
| Weight-to-power ratio | 11.5 kg/Hp, 87.2 Hp/tonne |
| Weight-to-torque ratio | 8.4 kg/Nm, 119.2 Nm/tonne |
| Engine specs | |
| Power | 68 Hp @ 6000 rpm. |
| Power per litre | 58.3 Hp/l |
| Torque | 93 Nm @ 3800 rpm. 68.59 lb.-ft. @ 3800 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 3K |
| Engine displacement | 1166 cm3 71.15 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75 mm 2.95 in. |
| Piston Stroke | 66 mm 2.6 in. |
| Compression ratio | 9:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Carburettor |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHV |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 780 kg 1719.61 lbs. |
| Max. weight | 1200 kg 2645.55 lbs. |
| Max load | 420 kg 925.94 lbs. |
| Fuel tank capacity | 36 l 9.51 US gal | 7.92 UK gal |
| Dimensions | |
| Length | 3895 mm 153.35 in. |
| Width | 1490 mm 58.66 in. |
| Height | 1400 mm 55.12 in. |
| Wheelbase | 2285 mm 89.96 in. |
| Front track | 1230 mm 48.43 in. |
| Rear (Back) track | 1220 mm 48.03 in. |
| Front overhang | 640 mm 25.2 in. |
| Rear overhang | 970 mm 38.19 in. |
| Minimum turning circle (turning diameter) | 9.1 m 29.86 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 4 gears, manual transmission |
| Front suspension | Independent coil spring, Transverse stabilizer |
| Rear suspension | Rigid axle suspension, Leaf spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Steering type | Cone worm with recirculation balls |
| What is the body type, Toyota Corolla I Station Wagon (E10)? | Station wagon (estate), 3 Doors, 5 Seats |
|---|---|
| How fast is the car, 1969 Corolla I Station Wagon (E10) 1200 (68 Hp)? | 135 km/h | 83.89 mph |
| How much power, Toyota Corolla Station wagon (estate) 1969 1200 (68 Hp)? | 68 Hp, 93 Nm 68.59 lb.-ft. |
| What is the engine size, Toyota Corolla Station wagon (estate) 1969 1200 (68 Hp)? | 1.2 l 1166 cm3 71.15 cu. in. |
| How many cylinders, 1969 Toyota 1200 (68 Hp)? | 4, Inline |
| What is the drivetrain, Toyota Corolla I Station Wagon (E10) Station wagon (estate) 1969 1200 (68 Hp)? | Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| How long is this vehicle, 1969 Toyota Corolla Station wagon (estate)? | 3895 mm 153.35 in. |
| How wide is the vehicle, 1969 Toyota Corolla Station wagon (estate)? | 1490 mm 58.66 in. |
| What is the curb weight, 1969 Toyota Corolla I Station Wagon (E10) 1200 (68 Hp)? | 780 kg 1719.61 lbs. |
| What is the gross weight, 1969 Toyota Corolla I Station Wagon (E10) 1200 (68 Hp)? | 1200 kg 2645.55 lbs. |
| How many gears, What type is the gearbox, 1969 Toyota Corolla I Station Wagon (E10) 1200 (68 Hp)? | 4, manual transmission |
