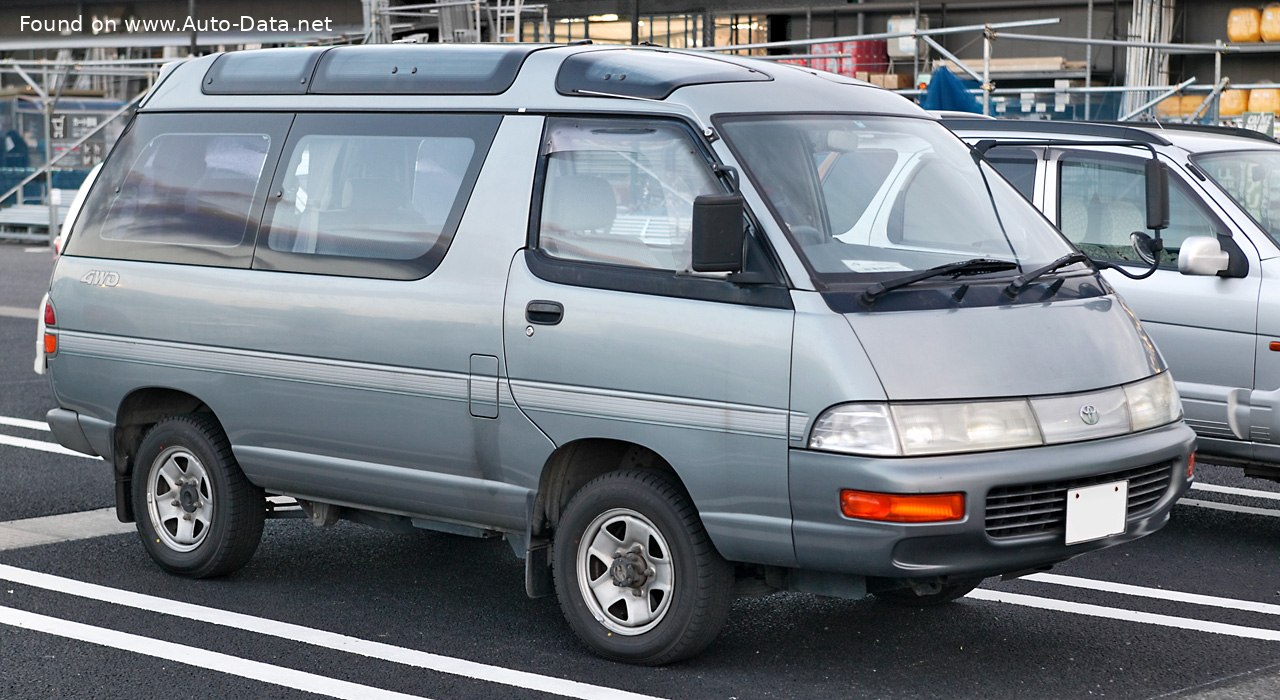

The Toyota Town Ace 2.0 TD (97 hp) 4WD is a commercial and passenger van produced by Toyota between 1992 and 1996. This variant occupied a specific niche within the broader Town Ace generation, offering a balance between utility, fuel efficiency, and all-weather capability. It was positioned as a practical choice for small businesses, families needing versatile space, and individuals requiring a reliable vehicle for both work and leisure. The Town Ace, in its various iterations, was a popular choice in Japan and export markets, known for its robust construction and relatively simple mechanicals.
Powertrain & Engine Architecture
The heart of the Town Ace 2.0 TD (97 hp) 4WD is the Toyota 2L-T diesel engine. This is a 2.2-liter (2184 cc) inline-four cylinder engine utilizing a precombustion chamber injection system. This system, common in older diesel engines, involves a small pre-chamber where fuel is initially injected and ignited, then transferred to the main combustion chamber. This aids in cold starting and reduces engine noise. The engine produces 97 horsepower at 4000 rpm and 192 Nm (141.61 lb-ft) of torque at 2200 rpm. The bore measures 86 mm (3.39 in) and the stroke is 94 mm (3.7 in), resulting in a compression ratio of 22.6:1. The engine features an Overhead Camshaft (OHC) valvetrain with two valves per cylinder.
The 2L-T engine is turbocharged, which significantly enhances torque output at lower engine speeds, making it well-suited for hauling and navigating varied terrain. The turbocharger provides increased air intake, allowing for more efficient combustion. The engine is transversely mounted in the front of the vehicle. The Town Ace 2.0 TD 4WD utilizes a 5-speed manual transmission, chosen for its durability and efficiency. The transmission is geared towards maximizing torque delivery rather than outright speed.
Engine Codes and Variations
The 2L-T engine code is specific to this turbocharged diesel variant. While other Town Ace models were available with gasoline engines, the 2.0 TD offered a compelling alternative for those prioritizing fuel economy and low-end power. The 2L-T was known for its relative simplicity, making it easier to maintain and repair compared to more complex engine designs.
Driving Characteristics
The Town Ace 2.0 TD (97 hp) 4WD delivers a utilitarian driving experience. Acceleration is modest, but the engine’s strong low-end torque makes it capable of carrying heavy loads and tackling inclines without excessive strain. The 5-speed manual transmission allows the driver to maintain optimal engine speed for the conditions. The turbocharger provides a noticeable boost in power once it spools up, improving responsiveness during overtaking maneuvers. However, it’s not a particularly fast vehicle; its strengths lie in its practicality and dependability.
The 4WD system provides enhanced traction on slippery surfaces, making it suitable for use in areas with inclement weather or rough roads. The gear ratios are optimized for hauling and towing, rather than high-speed cruising. The suspension is tuned for comfort and load-carrying capacity, resulting in a somewhat soft and compliant ride, even when the vehicle is fully loaded.
Equipment & Trim Levels
The Town Ace 2.0 TD (97 hp) 4WD was typically equipped with basic, functional features. Standard equipment generally included vinyl or cloth upholstery, a simple dashboard layout with essential gauges, and manual windows and door locks. Air conditioning was often an optional extra, as were power steering and upgraded audio systems. The interior was designed for durability and ease of cleaning, reflecting its commercial vehicle roots.
Trim levels were relatively limited. The focus was on providing a practical and affordable vehicle rather than luxurious appointments. Options typically included different seating configurations, upgraded interior trim, and exterior color choices. The overall aesthetic was functional and straightforward, prioritizing usability over style.
Chassis & Braking
The Town Ace 2.0 TD (97 hp) 4WD features a body-on-frame construction, providing a robust and durable chassis. The front suspension utilizes a transverse stabilizer, while the rear suspension also incorporates a transverse stabilizer to improve handling and reduce body roll. The front brakes are ventilated discs, offering good stopping power, while the rear brakes are drums. This combination was common for vehicles in this class during the 1990s.
The vehicle rides on 14-inch wheels with 175/80 R14 tires. The tires are chosen for their durability and all-weather performance. The 4WD system is typically part-time, allowing the driver to switch between two-wheel drive and four-wheel drive as needed. The curb weight of the vehicle is 1490 kg (3284.89 lbs).
Market Reception & Comparison
The Toyota Town Ace 2.0 TD (97 hp) 4WD was generally well-received in its target markets. Critics praised its fuel efficiency, reliability, and practicality. The diesel engine offered significantly better fuel economy compared to gasoline alternatives, making it an attractive option for businesses and individuals who drove long distances. The 4WD system added to its versatility, making it suitable for a wider range of applications.
Compared to other trims in the Town Ace lineup, the 2.0 TD 4WD offered a different set of strengths. The gasoline-powered models provided more refined performance, but at the expense of fuel economy. The 2.0 TD 4WD was a more practical and economical choice for those prioritizing utility and dependability. It competed with other light commercial vans and MPVs from manufacturers such as Nissan, Mitsubishi, and Daihatsu.
Technical Specifications
| Body type | Minivan, 4 Doors, 5 Seats |
| Engine | 2.2 l 2184 cm3 133.28 cu. in. Inline 4 |
| Power | 97 Hp @ 4000 rpm |
| Torque | 192 Nm @ 2200 rpm (141.61 lb.-ft. @ 2200 rpm) |
| Fuel Type | Diesel |
| Fuel Consumption (Urban) | 9.4 l/100 km (25 US mpg, 30.1 UK mpg, 10.6 km/l) |
| Weight-to-Power Ratio | 15.4 kg/Hp |
| Weight-to-Torque Ratio | 7.8 kg/Nm |
| Engine Layout | Front, Transverse |
| Number of Cylinders | 4 |
| Cylinder Bore | 86 mm (3.39 in) |
| Piston Stroke | 94 mm (3.7 in) |
| Compression Ratio | 22.6:1 |
| Valves per Cylinder | 2 |
| Fuel Injection System | Precombustion chamber injection |
| Engine Aspiration | Turbocharger |
| Valvetrain | OHC |
| Kerb Weight | 1490 kg (3284.89 lbs) |
| Fuel Tank Capacity | 60 l (15.85 US gal, 13.2 UK gal) |
| Length | 4360 mm (171.65 in) |
| Width | 1685 mm (66.34 in) |
| Height | 1825 mm (71.85 in) |
| Wheelbase | 2230 mm (87.8 in) |
| Front Track | 1440 mm (56.69 in) |
| Rear Track | 1385 mm (54.53 in) |
| Drivetrain | All wheel drive (4×4) |
| Gearbox | 5 gears, manual transmission |
| Front Suspension | Transverse stabilizer |
| Rear Suspension | Transverse stabilizer |
| Front Brakes | Ventilated discs |
| Rear Brakes | Drum |
| Tire Size | 175/80 R14 |
| Wheel Rim Size | 14 |
Legacy
The Toyota Town Ace 2.0 TD (97 hp) 4WD has proven to be a durable and reliable vehicle over the long term. The 2L-T engine, while not particularly powerful, is known for its longevity and relatively simple maintenance requirements. Many examples are still in use today, particularly in developing countries where affordability and dependability are highly valued. The vehicle’s robust construction and simple mechanicals make it relatively easy to repair and maintain, even with limited resources.
In the used car market, the Town Ace 2.0 TD 4WD remains a popular choice for those seeking a practical and affordable van. Its fuel efficiency and 4WD capability add to its appeal. While it may not offer the comfort or refinement of more modern vehicles, its reliability and versatility make it a compelling option for those prioritizing functionality over luxury. The Town Ace, in all its variants, cemented Toyota’s reputation for building durable and dependable vehicles.
