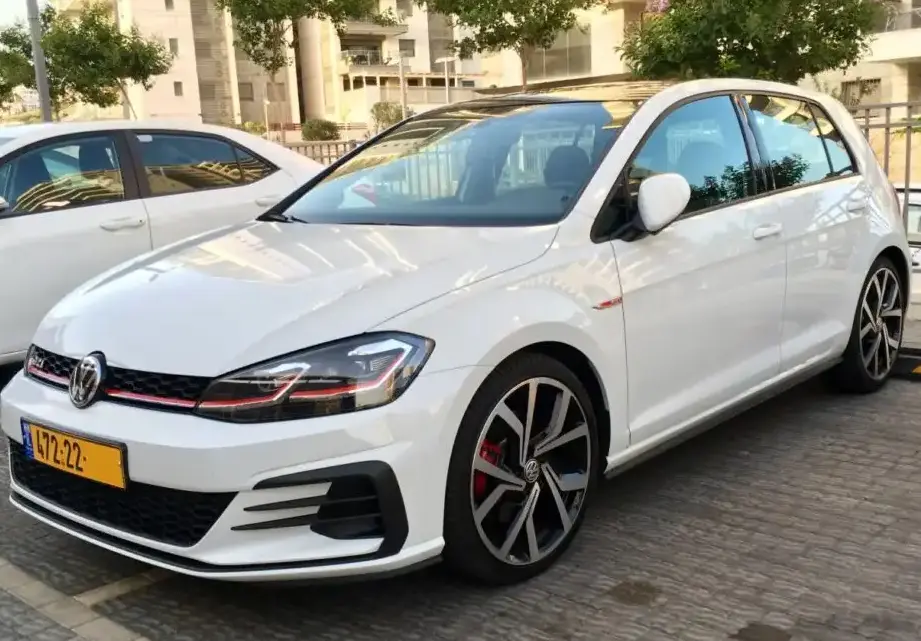

The Volkswagen Golf VII, specifically the 5-door hatchback produced during the 2017-2018 model years, represented a significant mid-cycle refresh of the seventh-generation Golf. Among the various trims available, the GTI 2.0 TSI variant, producing 220 horsepower, occupied a performance-oriented position within the lineup. This model aimed to deliver a balance of everyday usability and engaging driving dynamics, appealing to enthusiasts seeking a sporty yet practical compact car. The facelift brought updated styling, enhanced technology, and refinements to the engine and chassis.
Technical Specifications
| Brand | Volkswagen |
| Model | Golf |
| Generation | Golf VII (5-door, facelift 2017) |
| Type (Engine) | GTI 2.0 TSI (220 Hp) |
| Start of production | 2017 |
| End of production | 2018 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (economy) – urban (EPA) | 9.8 l/100 km (24 US mpg, 28.8 UK mpg, 10.2 km/l) |
| Fuel consumption (economy) – extra urban (EPA) | 7.4 l/100 km (31.8 US mpg, 38.2 UK mpg, 13.5 km/l) |
| Fuel consumption (economy) – combined (EPA) | 8.7 l/100 km (27 US mpg, 32.5 UK mpg, 11.5 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 6.3 kg/Hp, 158.4 Hp/tonne |
| Weight-to-torque ratio | 4 kg/Nm, 252 Nm/tonne |
| Power | 220 Hp @ 4700 rpm |
| Power per litre | 110.9 Hp/l |
| Torque | 350 Nm @ 1500 rpm (258.15 lb.-ft. @ 1500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | EA888 / CXCB |
| Engine displacement | 1984 cm3 (121.07 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82.5 mm (3.25 in.) |
| Piston Stroke | 92.8 mm (3.65 in.) |
| Compression ratio | 9.6:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 5.7 l (6.02 US qt | 5.02 UK qt) |
| Coolant | 8 l (8.45 US qt | 7.04 UK qt) |
| Kerb Weight | 1389 kg (3062.22 lbs.) |
| Max. weight | 1920 kg (4232.88 lbs.) |
| Max load | 531 kg (1170.65 lbs.) |
| Trunk (boot) space – minimum | 380 l (13.42 cu. ft.) |
| Trunk (boot) space – maximum | 1270 l (44.85 cu. ft.) |
| Fuel tank capacity | 50 l (13.21 US gal | 11 UK gal) |
| Length | 4268 mm (168.03 in.) |
| Width | 1799 mm (70.83 in.) |
| Width including mirrors | 2027 mm (79.8 in.) |
| Height | 1467 mm (57.76 in.) |
| Wheelbase | 2631 mm (103.58 in.) |
| Front track | 1538 mm (60.55 in.) |
| Rear (Back) track | 1516 mm (59.69 in.) |
| Ride height (ground clearance) | 129 mm (5.08 in.) |
| Drag coefficient (Cd) | 0.31 |
| Minimum turning circle (turning diameter) | 10.9 m (35.76 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs, 312×30 mm |
| Rear brakes | Disc, 272×10 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 225/40 R18 |
| Wheel rims size | 7.5J x 18 |
INTRODUCTION
The 2017-2018 Volkswagen Golf VII GTI 2.0 TSI (220 Hp) represents a refined iteration of Volkswagen’s iconic hot hatchback. Positioned as a mid-range performance option within the Golf VII lineup, it sat above the base models and below the more focused and track-oriented GTI Performance Pack. Built on the MQB (Modular Transverse Matrix) platform – specifically the 1HX0/A3 variant – this Golf aimed to provide a compelling blend of practicality, comfort, and spirited driving. The facelift brought visual updates, including revised bumpers, headlights, and taillights, along with interior enhancements and updated infotainment systems.
Powertrain & Engine Architecture
At the heart of the GTI 2.0 TSI is the EA888 engine, specifically the CXCB code variant. This 1.984-liter (121.07 cubic inches) inline-four cylinder engine utilizes direct fuel injection and is turbocharged with an intercooler. The engine’s design incorporates a cylinder head with dual overhead camshafts (DOHC) and four valves per cylinder, optimizing airflow for increased power output. The 220 horsepower peak is achieved at 4700 rpm, while the 350 Nm (258.15 lb.-ft.) of torque is readily available from 1500 rpm, providing strong low-end and mid-range acceleration. The engine’s turbocharger is a twin-scroll unit, designed to minimize turbo lag and improve responsiveness. The 6-speed manual transmission was standard, offering precise shifts and driver engagement.
Driving Characteristics
The 220 hp GTI with a manual transmission delivers a noticeably engaging driving experience. The readily available torque from 1500 rpm makes everyday driving effortless, while the power band extends smoothly to the redline. The manual gearbox is well-matched to the engine’s characteristics, providing precise and satisfying shifts. Compared to the base Golf models, the GTI offers significantly improved acceleration and responsiveness. While not as aggressively tuned as the GTI Performance Pack, the 220 hp version provides a balanced and enjoyable driving experience suitable for both daily commutes and spirited weekend drives. The suspension is tuned for a comfortable yet controlled ride, offering good body control in corners without sacrificing ride quality.
Equipment & Trim Levels
The 2017-2018 Golf VII GTI 2.0 TSI came standard with a comprehensive list of features. Interior appointments included sport seats upholstered in the classic GTI plaid fabric, a leather-wrapped steering wheel, and aluminum pedal caps. Standard technology included a touchscreen infotainment system with Apple CarPlay and Android Auto compatibility, as well as automatic climate control. Optional extras included a panoramic sunroof, adaptive dampers (DCC), and a premium sound system. Safety features such as ABS, electronic stability control, and multiple airbags were standard. The GTI trim level also included unique exterior styling cues, such as a honeycomb grille, red brake calipers, and a rear spoiler.
Chassis & Braking
The Golf VII GTI utilizes an independent suspension setup on both the front and rear axles. The front suspension employs a McPherson strut design with coil springs and an anti-roll bar, while the rear suspension features a multi-link setup with a stabilizer bar. This configuration provides a good balance of ride comfort and handling precision. The braking system consists of ventilated discs at the front and solid discs at the rear. The GTI also benefits from Volkswagen’s electronic stability control system, which helps to maintain control during challenging driving conditions. The standard tire size is 225/40 R18, providing ample grip for spirited driving.
Market Reception & Comparison
The 2017-2018 Golf VII GTI 2.0 TSI was generally well-received by automotive critics. It was praised for its engaging driving dynamics, comfortable ride, and practical interior. Compared to the base Golf models, the GTI offered a significant performance upgrade without sacrificing everyday usability. Compared to the GTI Performance Pack, the 220 hp version offered a slightly more relaxed driving experience and a lower price point. Fuel economy was also a strong point, with combined fuel consumption figures around 27 US mpg. Reliability was generally good, although some owners reported minor issues with the infotainment system.
Legacy
The EA888 engine, in its various iterations, has proven to be a robust and reliable powerplant. The 2017-2018 Golf VII GTI 2.0 TSI continues to hold its value in the used car market, thanks to its reputation for quality, performance, and practicality. The GTI remains a popular choice among enthusiasts seeking a well-rounded and engaging hot hatchback. While newer generations of the Golf GTI have emerged, the VII generation remains a desirable and capable vehicle, offering a compelling blend of performance, comfort, and style.
