2020-2024 Volkswagen Golf VIII GTE 1.4 TSI (245 Hp) eHybrid DSG

Technical Specifications

Brand Volkswagen
Model Golf
Generation Golf VIII
Type (Engine) GTE 1.4 TSI (245 Hp) eHybrid DSG
Start of production 2020
End of production 2024
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Hatchback
Seats 5
Doors 5
Combined fuel consumption (WLTP) 1.2 l/100 km (196 US mpg, 235.4 UK mpg, 83.3 km/l)
CO2 emissions (WLTP) 27 g/km
Fuel consumption (NEDC) – combined 1.7 l/100 km (138.4 US mpg, 166.2 UK mpg, 58.8 km/l)
CO2 emissions (NEDC) 38 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 6.7 sec
Acceleration 0 – 62 mph 6.7 sec
Acceleration 0 – 60 mph 6.4 sec
Maximum speed 225 km/h (139.81 mph)
Emission standard EURO 6d-ISC-FCM
Weight-to-power ratio 6.3 kg/Hp, 158.2 Hp/tonne
Weight-to-torque ratio 3.9 kg/Nm, 258.2 Nm/tonne
Gross battery capacity 13 kWh
Net (usable) battery capacity 10.4 kWh
Battery technology Lithium-ion (Li-Ion)
Battery weight 130 kg (286.6 lbs)
Battery location Below the floor, under the rear seats
All-electric range (NEDC) 70 km (43.5 mi)
Average Energy consumption (WLTP) 14.9 kWh/100 km (23.98 kWh/100 mi, 141 MPGe, 6.7 km/kWh, 4.2 mi/kWh)
Average Energy consumption (NEDC) 10.7 kWh/100 km (17.22 kWh/100 mi, 196 MPGe, 9.3 km/kWh, 5.8 mi/kWh)
Max speed (electric) 130 km/h (80.78 mph)
Electric motor power 110 Hp
Electric motor Torque 330 Nm (243.4 lb.-ft.)
Electric motor location Between the combustion engine and the transmission
System power 245 Hp
System torque 400 Nm (295.02 lb.-ft.)
Power 150 Hp @ 5000-6000 rpm
Torque 250 Nm @ 1550-3500 rpm (184.39 lb.-ft. @ 1550-3500 rpm)
Engine layout Front, Transverse
Engine Model/Code DGEA
Engine displacement 1395 cm3 (85.13 cu. in.)
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm (2.93 in.)
Piston Stroke 80 mm (3.15 in.)
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l (4.23 US qt | 3.52 UK qt)
Coolant 10 l (10.57 US qt | 8.8 UK qt)
Kerb Weight 1549 kg (3414.96 lbs)
Max. weight 2040 kg (4497.43 lbs)
Max load 491 kg (1082.47 lbs)
Trunk (boot) space – minimum 273 l (9.64 cu. ft.)
Trunk (boot) space – maximum 1129 l (39.87 cu. ft.)
Fuel tank capacity 39.5 l (10.43 US gal | 8.69 UK gal)
Max. roof load 75 kg (165.35 lbs)
Permitted trailer load with brakes (8%) 1700 kg (3747.86 lbs)
Permitted trailer load with brakes (12%) 1500 kg (3306.93 lbs)
Permitted trailer load without brakes 750 kg (1653.47 lbs)
Permitted towbar download 80 kg (176.37 lbs)
Length 4287 mm (168.78 in.)
Width 1789 mm (70.43 in.)
Width including mirrors 2073 mm (81.61 in.)
Height 1484 mm (58.43 in.)
Wheelbase 2630 mm (103.54 in.)
Front track 1533-1543 mm (60.35 – 60.75 in.)
Rear (Back) track 1506-1516 mm (59.29 – 59.69 in.)
Minimum turning circle (turning diameter) 10.9 m (35.76 ft.)
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission DSG
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/50 R17; 225/45 R17; 225/40 R18
Wheel rims size 6.5J x 17; 7.5J x 17; 7.5J x 18

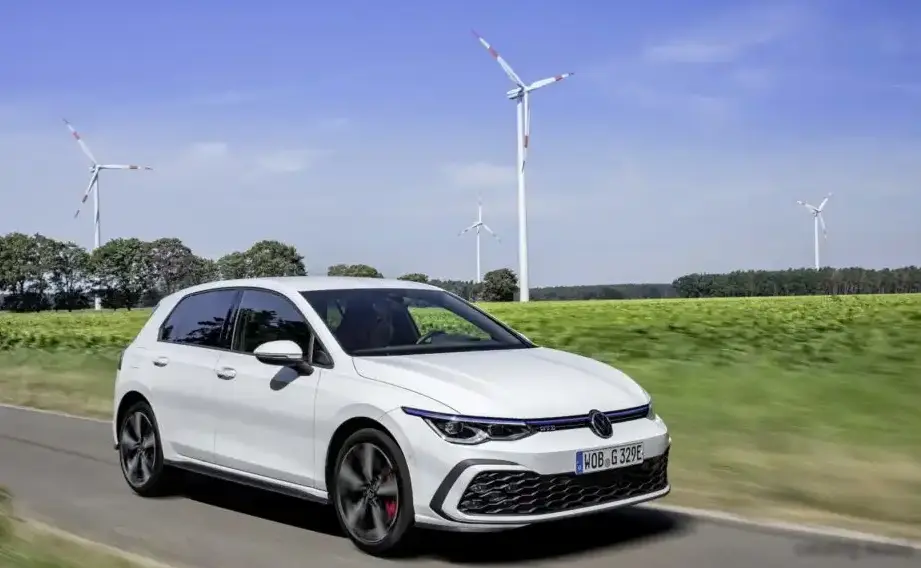

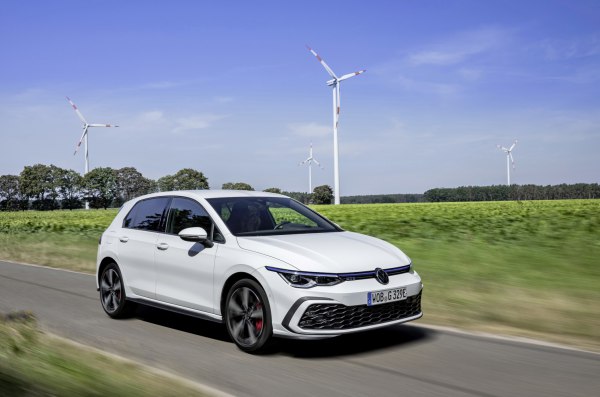

The Volkswagen Golf VIII GTE 1.4 TSI eHybrid DSG, launched in 2020, is a plug-in hybrid variant of the eighth-generation Golf. It builds upon the success of previous GTE models, offering a blend of performance and efficiency. The GTE distinguishes itself from other Golf VIII trims with its unique styling cues, enhanced powertrain, and focus on electric driving. It was positioned as a premium offering within the Golf range, appealing to buyers seeking a sporty and environmentally conscious vehicle. Production continued until 2024, with the model undergoing minor revisions during its lifecycle.

Powertrain & Engine Architecture

At the heart of the Golf VIII GTE lies a 1.4-liter turbocharged four-cylinder gasoline engine (engine code DGEA) paired with an 80 kW (110 hp) electric motor. The engine produces 150 hp and 250 Nm of torque, while the electric motor contributes 330 Nm of torque. Combined, the system delivers a total output of 245 hp and 400 Nm of torque. The engine utilizes direct fuel injection and a turbocharger with intercooling for improved efficiency and power delivery. The electric motor is integrated between the engine and the six-speed DSG (Dual-Clutch Gearbox) transmission. The 13 kWh lithium-ion battery pack, located under the rear seats, provides an all-electric range of up to 70 km (NEDC) or around 43.5 miles. The GTE features a sophisticated energy management system that optimizes the use of both power sources, allowing for seamless transitions between electric, hybrid, and gasoline-only modes.

Driving Characteristics

The Golf VIII GTE offers a noticeably more engaging driving experience compared to standard Golf models. The combined output of the engine and electric motor provides brisk acceleration, with a 0-60 mph time of approximately 6.4 seconds. The electric motor provides instant torque, resulting in strong off-the-line acceleration. The DSG transmission delivers quick and smooth gear changes, enhancing the overall driving experience. In electric mode, the GTE operates silently and smoothly, providing a refined and comfortable ride. The hybrid mode seamlessly blends the power of both engines, offering a balance of performance and efficiency. The GTE’s suspension is tuned for a slightly sportier feel compared to other Golf variants, providing improved handling and stability.

Equipment & Trim Levels

The Golf VIII GTE came standard with a comprehensive list of features, including a digital cockpit, an 8-inch touchscreen infotainment system with navigation, adaptive cruise control, lane assist, and automatic emergency braking. Interior upholstery typically consisted of sport seats with unique GTE-specific fabric and stitching. Optional extras included a larger 10-inch touchscreen, a premium sound system, and a panoramic sunroof. Exterior styling cues included unique GTE badging, blue accents on the front grille and brake calipers, and a distinctive rear diffuser.

Chassis & Braking

The Golf VIII GTE utilizes an independent McPherson strut suspension in the front and a multi-link suspension in the rear. This setup provides a comfortable ride while maintaining good handling characteristics. The GTE is equipped with ventilated disc brakes in the front and solid disc brakes in the rear. ABS (Anti-lock Braking System) and electronic stability control are standard features. The steering is electrically assisted, providing precise and responsive handling.

Market Reception & Comparison

The Golf VIII GTE was generally well-received by automotive critics, who praised its performance, efficiency, and technology. It was often compared to other plug-in hybrid hatchbacks, such as the Peugeot 3008 Hybrid and the Hyundai Ioniq Plug-in. The GTE offered a more engaging driving experience than many of its competitors, while also providing a competitive all-electric range. Fuel economy was a strong point, with the GTE achieving impressive MPG figures in hybrid mode. However, some critics noted that the GTE’s price was higher than that of other Golf variants.

Legacy

The Volkswagen Golf VIII GTE represents a significant step forward in Volkswagen’s electrification strategy. The powertrain has proven to be relatively reliable, with few widespread issues reported. On the used car market, the GTE holds its value well, due to its desirable combination of performance, efficiency, and technology. As the automotive industry continues to shift towards electrification, the Golf VIII GTE serves as a testament to Volkswagen’s commitment to developing innovative and sustainable vehicles.
