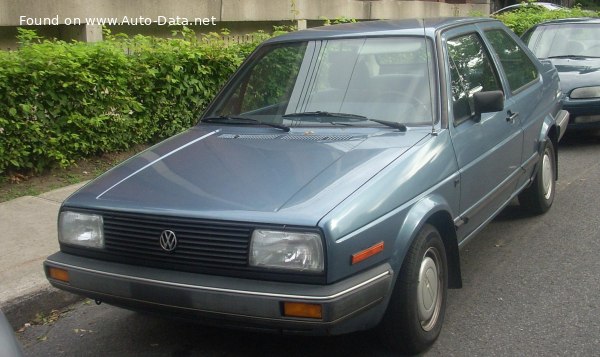

The Volkswagen Jetta II, specifically the two-door 1.3-liter (55 hp) variant, was produced between 1983 and 1987. This model represented a key entry point into the second generation of the Jetta, a compact sedan designed to offer practicality and affordability within the Volkswagen lineup. Positioned as the base model, it catered to buyers seeking economical transportation. The Jetta II, built on the A2 platform (internally designated as 1HX0 for the two-door), aimed to improve upon the first-generation Jetta (Type A1) with increased interior space, refined styling, and updated mechanical components. This particular 1.3L engine and manual transmission combination was primarily sold in European markets, where smaller displacement engines were favored due to tax regulations and fuel economy considerations.
Technical Specifications
| Brand | Volkswagen |
| Model | Jetta |
| Generation | Jetta II (2-doors) |
| Type (Engine) | 1.3 (55 Hp) |
| Start of production | 1983 |
| End of production | 1987 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 2 |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 17.2 sec |
| Acceleration 0 – 62 mph | 17.2 sec |
| Acceleration 0 – 60 mph | 16.3 sec |
| Maximum speed | 149 km/h (92.58 mph) |
| Weight-to-power ratio | 15.9 kg/Hp, 62.9 Hp/tonne |
| Weight-to-torque ratio | 9 kg/Nm, 110.9 Nm/tonne |
| Power | 55 Hp @ 5200 rpm |
| Power per litre | 43.2 Hp/l |
| Torque | 97 Nm @ 3000 rpm (71.54 lb.-ft. @ 3000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | NZ |
| Engine displacement | 1272 cm3 (77.62 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75 mm (2.95 in.) |
| Piston Stroke | 72 mm (2.83 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Carburettor |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 3.5 l (3.7 US qt | 3.08 UK qt) |
| Coolant | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Kerb Weight | 875 kg (1929.04 lbs.) |
| Max. weight | 1400 kg (3086.47 lbs.) |
| Max load | 525 kg (1157.43 lbs.) |
| Trunk (boot) space – minimum | 575 l (20.31 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4385 mm (172.64 in.) |
| Width | 1675 mm (65.94 in.) |
| Height | 1415 mm (55.71 in.) |
| Wheelbase | 2475 mm (97.44 in.) |
| Front track | 1425 mm (56.1 in.) |
| Rear (Back) track | 1420 mm (55.91 in.) |
| Drag coefficient (Cd) | 0.36 |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Steering type | Steering rack and pinion |
| Tires size | 175/70 R13 |
| Wheel rims size | 13 |
Powertrain & Engine Architecture
The heart of this Jetta II variant was the Volkswagen NZ engine, a 1.3-liter inline four-cylinder powerplant. This engine utilized a single overhead camshaft (OHC) valvetrain with two valves per cylinder. Fuel delivery was managed by a carburetor, a common feature for engines of this era, prioritizing simplicity and cost-effectiveness over the more advanced fuel injection systems. The NZ engine was known for its durability, though its performance was modest. The engine’s relatively small displacement and carbureted fuel system resulted in a modest 55 horsepower at 5200 rpm and 71.54 lb-ft of torque at 3000 rpm. The engine was transversely mounted, a layout common in front-wheel-drive vehicles, contributing to efficient packaging. The transmission was a four-speed manual, chosen to maximize fuel economy and provide a direct driving experience.
Driving Characteristics
The 1.3-liter Jetta II offered a utilitarian driving experience. Acceleration was slow, with a 0-60 mph time of around 16.3 seconds. The engine required frequent downshifting to maintain momentum, particularly when encountering hills or overtaking. Compared to the more powerful 1.6-liter and 1.8-liter versions of the Jetta II, or the later diesel options, this variant felt significantly underpowered. However, the four-speed manual transmission provided a reasonable level of control, and the car was relatively easy to handle. The gear ratios were optimized for fuel efficiency rather than outright performance. The suspension, while basic, provided a comfortable ride on most road surfaces.
Equipment & Trim Levels
The base-level 1.3-liter Jetta II was typically equipped with minimal features, reflecting its position as the entry-level model. Standard equipment generally included cloth upholstery, basic instrumentation (speedometer, fuel gauge, temperature gauge), and manual windows and door locks. Optional extras included a sunroof, upgraded stereo system, and power windows. Interior trim was typically simple and functional, with durable plastics and a focus on practicality. The exterior featured steel wheels with hubcaps, and chrome trim was limited to enhance affordability.
Chassis & Braking
The Jetta II utilized a front-wheel-drive layout with an independent McPherson strut suspension in the front and a coil spring suspension in the rear. The front brakes were disc brakes, providing adequate stopping power, while the rear brakes were drum brakes, a cost-saving measure common in this class of vehicle. The steering was a rack-and-pinion system, offering reasonably precise handling. The chassis was relatively lightweight, contributing to the car’s fuel efficiency. Stabilizer bars were often omitted on the base model to further reduce cost.
Market Reception & Comparison
The 1.3-liter Jetta II was generally well-received as an affordable and practical compact sedan. Critics acknowledged its fuel efficiency and durability, but often noted its lack of power. Compared to the higher-trim Jetta models, such as those equipped with the 1.6-liter or 1.8-liter engines, the 1.3-liter version offered significantly less performance. However, it was more economical to operate and maintain. The 1.3L version was often compared to other entry-level compact sedans of the era, such as the Ford Escort and Opel Kadett, and generally held its own in terms of value and reliability.
Legacy
The Volkswagen Jetta II 1.3-liter (55 hp) powertrain, while not known for its performance, proved to be remarkably durable and reliable. Many examples remain on the road today, a testament to the quality of Volkswagen engineering. In the used car market, these models are often sought after by enthusiasts looking for a simple, affordable, and easy-to-maintain classic car. Parts availability is generally good, and the engine is relatively straightforward to work on. However, due to its age, potential buyers should be aware of common issues such as rust, carburetor problems, and wear and tear on suspension components. The 1.3L Jetta II represents a significant chapter in Volkswagen’s history, offering a glimpse into the era of affordable and practical motoring.
