| General information | |
|---|---|

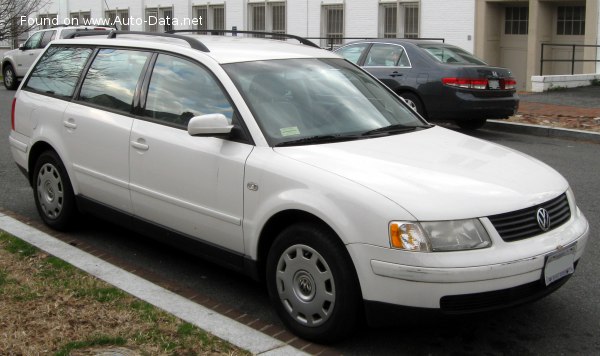

| Brand | Volkswagen |
| Model | Passat |
| Generation | Passat Variant (B5) |
| Type (Engine) | 1.6 (101 Hp) |
| Start of production | 1997 year |
| End of production | 2000 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban | 11.6 l/100 km 20.3 US mpg 24.4 UK mpg 8.6 km/l |
| Fuel consumption (economy) – extra urban | 6.3 l/100 km 37.3 US mpg 44.8 UK mpg 15.9 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.1 sec |
| Acceleration 0 – 62 mph | 13.1 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 12.4 sec |
| Maximum speed | 186 km/h 115.58 mph |
| Weight-to-power ratio | 12.6 kg/Hp, 79.5 Hp/tonne |
| Weight-to-torque ratio | 8.8 kg/Nm, 114.2 Nm/tonne |
| Engine specs | |
| Power | 101 Hp @ 5600 rpm. |
| Power per litre | 63.3 Hp/l |
| Torque | 145 Nm @ 3800 rpm. 106.95 lb.-ft. @ 3800 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | ADP, AHL, ANA, ARM |
| Engine displacement | 1595 cm3 97.33 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm 3.19 in. |
| Piston Stroke | 77.4 mm 3.05 in. |
| Compression ratio | 10.3:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 3 l 3.17 US qt | 2.64 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 7 l 7.4 US qt | 6.16 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1270 kg 2799.87 lbs. |
| Max. weight | 1820 kg 4012.41 lbs. |
| Max load | 550 kg 1212.54 lbs. |
| Trunk (boot) space – minimum | 465 l 16.42 cu. ft. |
| Trunk (boot) space – maximum | 1500 l 52.97 cu. ft. |
| Fuel tank capacity | 70 l 18.49 US gal | 15.4 UK gal |
| Dimensions | |
| Length | 4675 mm 184.06 in. |
| Width | 1740 mm 68.5 in. |
| Height | 1459 mm 57.44 in. |
| Wheelbase | 2703 mm 106.42 in. |
| Front track | 1498 mm 58.98 in. |
| Rear (Back) track | 1500 mm 59.06 in. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Suspension with traction connecting levers |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 6J x 15 |
| What is the body type, Volkswagen Passat Variant (B5)? | Station wagon (estate), 5 Doors, 5 Seats |
|---|---|
| How fast is the car, 1997 Passat Variant (B5) 1.6 (101 Hp)? | 186 km/h | 115.58 mph 0-100 km/h: 13.1 sec 0-60 mph: 12.4 sec |
| How much power, Volkswagen Passat Station wagon (estate) 1997 1.6 (101 Hp)? | 101 Hp, 145 Nm 106.95 lb.-ft. |
| What is the engine size, Volkswagen Passat Station wagon (estate) 1997 1.6 (101 Hp)? | 1.6 l 1595 cm3 97.33 cu. in. |
| How many cylinders, 1997 Volkswagen 1.6 (101 Hp)? | 4, Inline |
| What is the drivetrain, Volkswagen Passat Variant (B5) Station wagon (estate) 1997 1.6 (101 Hp)? | Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| How long is this vehicle, 1997 Volkswagen Passat Station wagon (estate)? | 4675 mm 184.06 in. |
| How wide is the vehicle, 1997 Volkswagen Passat Station wagon (estate)? | 1740 mm 68.5 in. |
| What is the curb weight, 1997 Volkswagen Passat Variant (B5) 1.6 (101 Hp)? | 1270 kg 2799.87 lbs. |
| What is the gross weight, 1997 Volkswagen Passat Variant (B5) 1.6 (101 Hp)? | 1820 kg 4012.41 lbs. |
| How much trunk (boot) space, 1997 Volkswagen Passat Station wagon (estate)? | 465 – 1500 l 16.42 – 52.97 cu. ft. |
| How many gears, What type is the gearbox, 1997 Volkswagen Passat Variant (B5) 1.6 (101 Hp)? | 5, manual transmission |
