Volkswagen Tiguan III 1.4 TSI (150 Hp) DSG

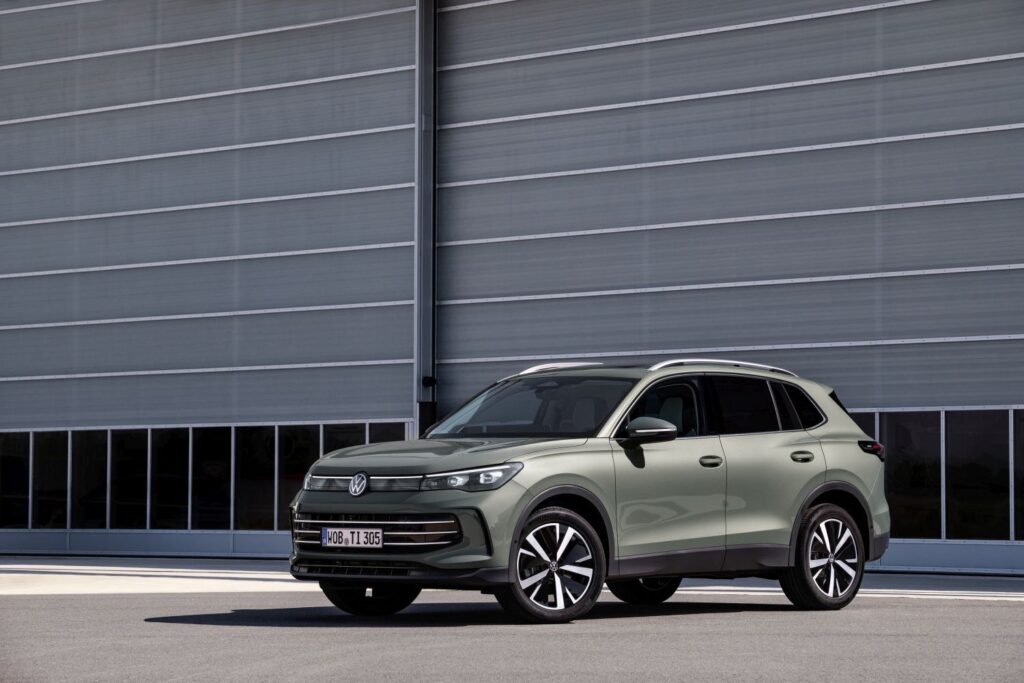

The Volkswagen Tiguan III 1.4 TSI (150 Hp) DSG represents the latest iteration of Volkswagen’s globally popular compact SUV. Introduced in 2024, this model is primarily aimed at the European market, where the Tiguan consistently ranks among the best-selling vehicles in its class. While not directly sold in the United States in this specific configuration, the Tiguan is well-established in the US market, typically offering larger engine options and a longer wheelbase. The Tiguan III builds upon the success of its predecessors, focusing on enhanced technology, improved fuel efficiency, and a more refined driving experience within the competitive SUV segment.

Volkswagen Tiguan III 1.4 TSI: Overview and Market Position

The Tiguan, meaning “tiger” in German, has become a cornerstone of Volkswagen’s SUV lineup. The third generation, launched in 2024, represents a significant evolution in design and technology. In Europe, the Tiguan competes with models like the Nissan Qashqai, Peugeot 3008, and Hyundai Tucson. The 1.4 TSI variant, equipped with a turbocharged gasoline engine and a dual-clutch gearbox (DSG), is positioned as a balance between performance and economy, appealing to buyers seeking a practical and efficient family vehicle. It’s important to note that US market Tiguans generally feature larger displacement engines, often a 2.0-liter turbocharged four-cylinder, and a longer body style to accommodate a third row of seating.

Engine & Performance

The heart of the Tiguan III 1.4 TSI is a 1.4-liter, inline-four cylinder gasoline engine. This engine produces 150 horsepower at 5000-6000 rpm and 250 Nm (184.39 lb.-ft.) of torque between 1500-3500 rpm. The engine utilizes direct fuel injection and is coupled with a turbocharger and intercooler to enhance power and efficiency. Power is delivered to the front wheels via a sophisticated 7-speed dual-clutch transmission (DSG), known for its quick and smooth gear changes. This powertrain configuration allows for a 0-100 km/h (0-62 mph) acceleration time of 9.2 seconds, and a 0-60 mph time of approximately 8.7 seconds. The vehicle achieves a maximum speed of 207 km/h (128.62 mph). The engine’s power-to-weight ratio is 10 kg/Hp, and the torque-to-weight ratio is 6 kg/Nm, contributing to a responsive driving experience.

Design & Features

The Tiguan III maintains the familiar SUV silhouette, but with a more modern and refined aesthetic. It’s a five-door SUV with seating for five passengers. The exterior design features sharp lines, a prominent grille, and available LED lighting. Inside, the Tiguan III boasts a well-appointed cabin with a focus on technology and comfort. Key features include a digital instrument cluster, a touchscreen infotainment system, and a range of driver-assistance systems. Safety features are comprehensive, including ABS, and various stability control systems. The vehicle offers a generous amount of cargo space, with 652 liters (23.03 cu. ft.) with the rear seats up and 1650 liters (58.27 cu. ft.) with the rear seats folded down. The fuel tank capacity is 55 liters (14.53 US gal).

Technical Specifications

Brand Volkswagen
Model Tiguan
Generation Tiguan III
Type (Engine) 1.4 TSI (150 Hp) DSG
Start of production 2024
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Combined fuel consumption (WLTP) 8.5 l/100 km (27.7 US mpg, 33.2 UK mpg, 11.8 km/l)
CO2 emissions (WLTP) 192 g/km
Fuel consumption (urban) 9.8 l/100 km (24 US mpg, 28.8 UK mpg, 10.2 km/l)
Fuel consumption (extra urban) 6.3 l/100 km (37.3 US mpg, 44.8 UK mpg, 15.9 km/l)
Fuel consumption (combined) 7.6 l/100 km (30.9 US mpg, 37.2 UK mpg, 13.2 km/l)
CO2 emissions 173 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.2 sec
Acceleration 0 – 62 mph 9.2 sec
Acceleration 0 – 60 mph 8.7 sec
Maximum speed 207 km/h (128.62 mph)
Emission standard Euro 6
Weight-to-power ratio 10 kg/Hp
Weight-to-torque ratio 6 kg/Nm
Power 150 Hp @ 5000-6000 rpm
Torque 250 Nm @ 1500-3500 rpm (184.39 lb.-ft.)
Engine layout Front, Transverse
Engine Model/Code DJKA
Engine displacement 1395 cm3 (85.13 cu. in.)
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm (2.93 in.)
Piston Stroke 80 mm (3.15 in.)
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Kerb Weight 1496-1605 kg (3298.12 – 3538.42 lbs.)
Max. weight 1970-2140 kg (4343.11 – 4717.89 lbs.)
Max load 474-535 kg (1044.99 – 1179.47 lbs.)
Trunk (boot) space – minimum 652 l (23.03 cu. ft.)
Trunk (boot) space – maximum 1650 l (58.27 cu. ft.)
Fuel tank capacity 55 l (14.53 US gal | 12.1 UK gal)
Permitted trailer load with brakes (8%) 2000 kg (4409.25 lbs.)
Permitted trailer load with brakes (12%) 1900 kg (4188.78 lbs.)
Permitted trailer load without brakes 750 kg (1653.47 lbs.)
Permitted towbar download 100 kg (220.46 lbs.)
Length 4539 mm (178.7 in.)
Width 1842 mm (72.52 in.)
Width including mirrors 2140 mm (84.25 in.)
Height 1658 mm (65.28 in.)
Wheelbase 2676 mm (105.35 in.)
Front track 1586-1590 mm (62.44 – 62.6 in.)
Rear (Back) track 1578-1582 mm (62.13 – 62.28 in.)
Ride height (ground clearance) 191 mm (7.52 in.)
Minimum turning circle (turning diameter) 11.7 m (38.39 ft.)
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission DSG
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/65 R17; 235/55 R18; 235/50 R19; 255/45 R19; 255/40 R20
Wheel rims size 7J x 17; 7J x 18; 7J x 19; 8.5J x 19; 8.5J x 20

The Volkswagen Tiguan III 1.4 TSI DSG continues the Tiguan’s legacy as a versatile and practical SUV, offering a compelling blend of efficiency, technology, and comfort for European drivers.
