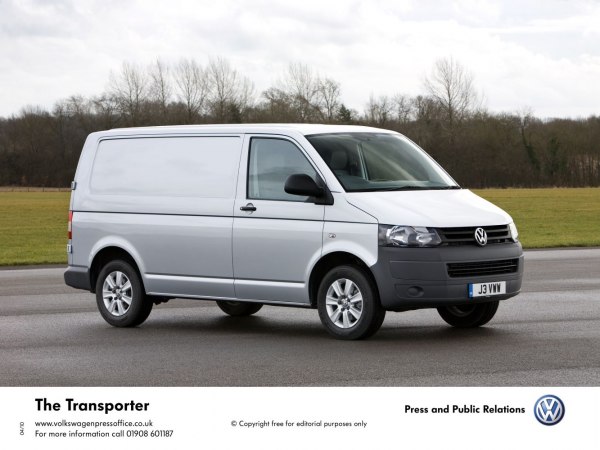

| General information | |
|---|---|
| Brand | Volkswagen |
| Model | Transporter |
| Generation | Transporter (T5, facelift 2009) Panel Van |
| Type (Engine) | 2.0 TDI (180 Hp) 4MOTION L2H1 |
| Start of production | 2009 year |
| End of production | 2015 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Van |
| Seats | 2-3 |
| Doors | 4-5 |
| Performance specs | |
| Fuel consumption (economy) – urban (NEDC) | 10.2-10.5 l/100 km 23.1 – 22.4 US mpg 27.7 – 26.9 UK mpg 9.8 – 9.5 km/l |
| Fuel consumption (economy) – extra urban (NEDC) | 6.9-7.2 l/100 km 34.1 – 32.7 US mpg 40.9 – 39.2 UK mpg 14.5 – 13.9 km/l |
| Fuel consumption (economy) – combined (NEDC) | 8.1-8.4 l/100 km 29 – 28 US mpg 34.9 – 33.6 UK mpg 12.3 – 11.9 km/l |
| CO2 emissions (NEDC) | 214-221 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 10.4 sec |
| Acceleration 0 – 62 mph | 10.4 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 9.9 sec |
| Maximum speed | 188 km/h 116.82 mph |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 10.8 kg/Hp, 92.7 Hp/tonne |
| Weight-to-torque ratio | 4.9 kg/Nm, 206.1 Nm/tonne |
| Engine specs | |
| Power | 180 Hp @ 4000 rpm. |
| Power per litre | 91.5 Hp/l |
| Torque | 400 Nm @ 1500-2000 rpm. 295.02 lb.-ft. @ 1500-2000 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | EA189 / CFCA |
| Engine displacement | 1968 cm3 120.09 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm 3.19 in. |
| Piston Stroke | 95.5 mm 3.76 in. |
| Compression ratio | 16.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | BiTurbo, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 7 l 7.4 US qt | 6.16 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 11 l 11.62 US qt | 9.68 UK qt |
| Engine systems | Particulate filter |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1941-2358 kg 4279.17 – 5198.5 lbs. |
| Max. weight | 3000-3200 kg 6613.87 – 7054.79 lbs. |
| Max load | 842-1059 kg 1856.29 – 2334.7 lbs. |
| Trunk (boot) space – maximum | 6700 l 236.61 cu. ft. |
| Fuel tank capacity | 80 l 21.13 US gal | 17.6 UK gal |
| Max. roof load | 100 kg 220.46 lbs. |
| Permitted trailer load with brakes (12%) | 2500 kg 5511.56 lbs. |
| Permitted trailer load without brakes | 750 kg 1653.47 lbs. |
| Permitted towbar download | 100 kg 220.46 lbs. |
| Dimensions | |
| Length | 5292 mm 208.35 in. |
| Width | 1904 mm 74.96 in. |
| Width including mirrors | 2283 mm 89.88 in. |
| Height | 1990 mm 78.35 in. |
| Wheelbase | 3400 mm 133.86 in. |
| Front overhang | 896 mm 35.28 in. |
| Rear overhang | 996 mm 39.21 in. |
| Ride height (ground clearance) | 201 mm 7.91 in. |
| Minimum turning circle (turning diameter) | 13.2 m 43.31 ft. |
| Approach angle | 21° |
| Departure angle | 17° |
| Ramp-over (brakeover) angle | 12° |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent coil spring, Transverse stabilizer, Trailing arm |
| Front brakes | Ventilated discs, 340×32.5 mm |
| Rear brakes | Ventilated discs, 294×22 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/60 R17; 235/55 R17; 255/45 R18 |
| Wheel rims size | 7J x 17; 8J x 18 |
| What is the body type, Volkswagen Transporter (T5, facelift 2009) Panel Van? | Van, 4-5 Doors, 2-3 Seats |
|---|---|
| What is the fuel economy, Volkswagen Transporter (T5, facelift 2009) Panel Van 2.0 TDI (180 Hp) 4MOTION L2H1? | 8.1-8.4 l/100 km 29 – 28 US mpg 34.9 – 33.6 UK mpg 12.3 – 11.9 km/l |
| How ECO is the car, Volkswagen Transporter 2.0 TDI (180 Hp) 4MOTION L2H1? | 214-221 g/km CO2 Euro 5 |
| How fast is the car, 2009 Transporter (T5, facelift 2009) Panel Van 2.0 TDI (180 Hp) 4MOTION L2H1? | 188 km/h | 116.82 mph 0-100 km/h: 10.4 sec 0-60 mph: 9.9 sec |
| How much power, Volkswagen Transporter Van 2009 2.0 TDI (180 Hp) 4MOTION L2H1? | 180 Hp, 400 Nm 295.02 lb.-ft. |
| What is the engine size, Volkswagen Transporter Van 2009 2.0 TDI (180 Hp) 4MOTION L2H1? | 2.0 l 1968 cm3 120.09 cu. in. |
| How many cylinders, 2009 Volkswagen 2.0 TDI (180 Hp) 4MOTION L2H1? | 4, Inline |
| What is the drivetrain, Volkswagen Transporter (T5, facelift 2009) Panel Van Van 2009 2.0 TDI (180 Hp) 4MOTION L2H1? | All wheel drive (4×4). Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary. |
| How long is this vehicle, 2009 Volkswagen Transporter Van? | 5292 mm 208.35 in. |
| How wide is the vehicle, 2009 Volkswagen Transporter Van? | 1904 mm 74.96 in. |
| What is the curb weight, 2009 Volkswagen Transporter (T5, facelift 2009) Panel Van 2.0 TDI (180 Hp) 4MOTION L2H1? | 1941-2358 kg 4279.17 – 5198.5 lbs. |
| What is the gross weight, 2009 Volkswagen Transporter (T5, facelift 2009) Panel Van 2.0 TDI (180 Hp) 4MOTION L2H1? | 3000-3200 kg 6613.87 – 7054.79 lbs. |
| How much trunk (boot) space, 2009 Volkswagen Transporter Van? | 6700 l 236.61 cu. ft. |
| How many gears, What type is the gearbox, 2009 Volkswagen Transporter (T5, facelift 2009) Panel Van 2.0 TDI (180 Hp) 4MOTION L2H1? | 6, manual transmission |
